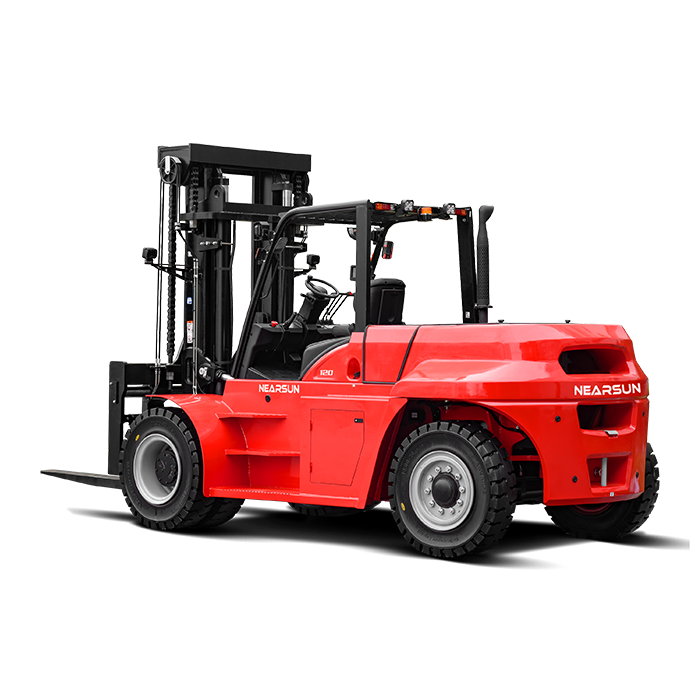

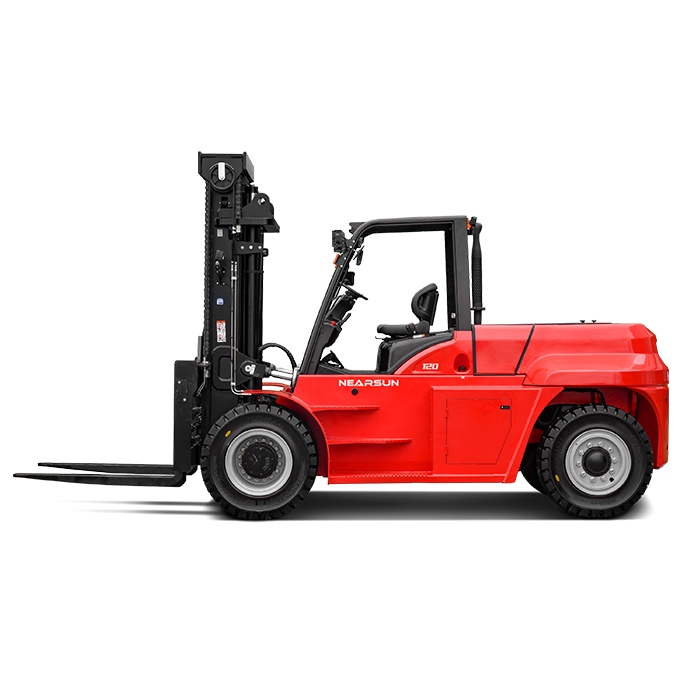

Diesel Forklift-CPCD120
12000 kgRated Capacity
YUCHAI/YCA07160-T400Engine Manufacturer
3000 mmLift Height
Diesel Forklift-CPCD120

Diesel Forklift-CPCD120

The upper surfaces of the large locked toolbox and counterweight on the left and right sides of the vehicle body are designed to be fully flat to enable a large storage space. The fully hydraulic load sensing steering system makes steering easier and more flexible. The wide-open hood, water tank lid, left and right hood side panels and front bottom panel can be removed easily to facilitate maintenance. Integral steel plates are welded to form the vehicle frame and the tilt cylinder strength is optimized to adapt to heavy-duty and harsh operating conditions.

Kontaktieren Sie unsModelle vergleichen
Position
Spezifikation
Einheit
  • Rated Capacity
    12000
    kg
  • Engine Manufacturer
    YUCHAI/YCA07160-T400
  • Lift Height
    3000
    mm
  • Service Weight
    14950
    kg
  • Drive Type
    diesel
  • Rated Power
    118
    kw
  • Height of overhead cabin
    2603
    mm
  • Turning Radius
    4180
    mm
  • Fork Dimensions
    80×200×1500
    s/e/l（mm）
  • Travel Speed, Laden/Unladen
    27/30
    km/h
  • Wheelbase
    2950
    mm
  • Free Lift Height
    80
    mm
  • Tyre size, front
    10.00-20-18PR
  • Tyre size, rear
    10.00-20-18PR
  • Overall Width
    2320
    mm
  • Height, mast lowered
    3130
    mm
  • Load Centre Distance
    600
    mm

Aufgrund kontinuierlicher technologischer Innovationen können sich Produktkonfigurationen und technische Parameter ohne vorherige Ankündigung ändern. Alle Spezifikationen und Konfigurationen dienen nur als Referenz. Bei Fragen wenden Sie sich bitte an unser internationales Vertriebsteam. Maßgeblich ist der formell unterzeichnete Geschäftsvertrag.

Produktübersicht

The upper surfaces of the large locked toolbox and counterweight on the left and right sides of the vehicle body are designed to be fully flat to enable a large storage space. The fully hydraulic load sensing steering system makes steering easier and more flexible. The wide-open hood, water tank lid, left and right hood side panels and front bottom panel can be removed easily to facilitate maintenance. Integral steel plates are welded to form the vehicle frame and the tilt cylinder strength is optimized to adapt to heavy-duty and harsh operating conditions.

  • The upper surfaces of the large locked toolbox and counterweight on the left and right sides of the vehicle body are designed to be fully flat to enable a large storage space.

    The upper surfaces of the large locked toolbox and counterweight on the left and right sides of the vehicle body are designed to be fully flat to enable a large storage space.

  • The fully hydraulic load sensing steering system makes steering easier and more flexible.

    The fully hydraulic load sensing steering system makes steering easier and more flexible.

  • The wide-open hood, water tank lid, left and right hood side panels and front bottom panel can be removed easily to facilitate maintenance.

    The wide-open hood, water tank lid, left and right hood side panels and front bottom panel can be removed easily to facilitate maintenance.

  • Integral steel plates are welded to form the vehicle frame and the tilt cylinder strength is optimized to adapt to heavy-duty and harsh operating conditions.

    Integral steel plates are welded to form the vehicle frame and the tilt cylinder strength is optimized to adapt to heavy-duty and harsh operating conditions.
