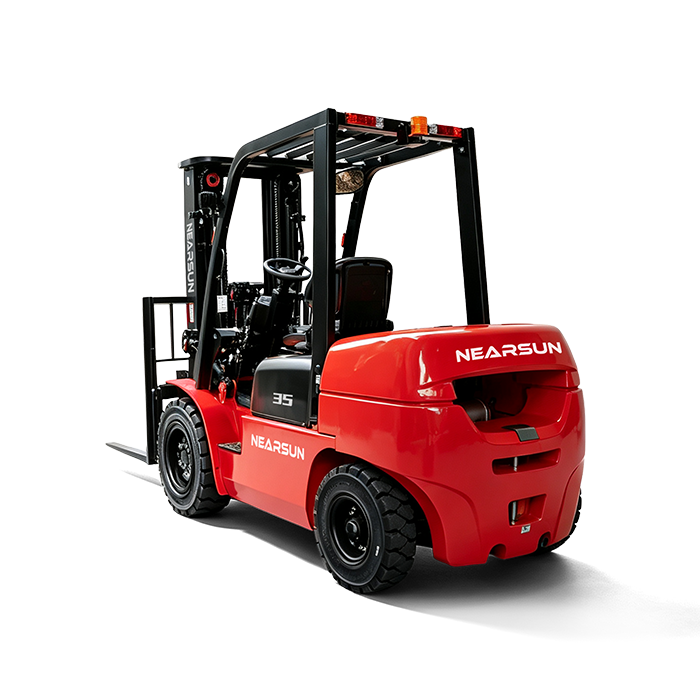

Diesel Forklift-CPCD35
3500 kgRated Capacity
C490BPG-204/204AEngine Manufacturer
3000 mmLift Height
Diesel Forklift-CPCD35

Diesel Forklift-CPCD35

The engine intake manifold features a high-positioned, independent channel that effectively prevents dust from being drawn in. The front floor panel uses an integrated latch mechanism that can be opened without tools, greatly improving convenience for routine maintenance and repairs. Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair. The aluminum ribbon-tubular radiator with large capacity and the optimized cooling system fu rther enhance the heat dissipation capability of the whole truck to ensure the reliability of the engine.

Kontaktieren Sie unsModelle vergleichen
Position
Spezifikation
Einheit
  • Rated Capacity
    3500
    kg
  • Engine Manufacturer
    C490BPG-204/204A
  • Lift Height
    3000
    mm
  • Service Weight
    4550
    kg
  • Drive Type
    diesel
  • Rated Power
    36.7
    kw
  • Height of Overhead Guard
    2150
    mm
  • Turning Radius
    2420
    mm
  • Fork Dimensions
    1070×122×50
    s/e/l（mm）
  • Travel Speed, Laden/Unladen
    19/20
    km/h
  • Wheelbase
    1760
    mm
  • Free Lift Height
    150
    mm
  • Tyre size, front
    28×9-15-14PR
  • Tyre size, rear
    6.50-10-10PR
  • Overall Width
    1225
    mm
  • Height, mast lowered
    2170
    mm
  • Load Centre Distance
    500
    mm

Aufgrund kontinuierlicher technologischer Innovationen können sich Produktkonfigurationen und technische Parameter ohne vorherige Ankündigung ändern. Alle Spezifikationen und Konfigurationen dienen nur als Referenz. Bei Fragen wenden Sie sich bitte an unser internationales Vertriebsteam. Maßgeblich ist der formell unterzeichnete Geschäftsvertrag.

Produktübersicht

The engine intake manifold features a high-positioned, independent channel that effectively prevents dust from being drawn in. The front floor panel uses an integrated latch mechanism that can be opened without tools, greatly improving convenience for routine maintenance and repairs. Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair. The aluminum ribbon-tubular radiator with large capacity and the optimized cooling system fu rther enhance the heat dissipation capability of the whole truck to ensure the reliability of the engine.

  • The engine intake manifold features a high-positioned, independent channel that effectively prevents dust from being drawn in.

    The engine intake manifold features a high-positioned, independent channel that effectively prevents dust from being drawn in.

  • The front floor panel uses an integrated latch mechanism that can be opened without tools, greatly improving convenience for routine maintenance and repairs.

    The front floor panel uses an integrated latch mechanism that can be opened without tools, greatly improving convenience for routine maintenance and repairs.

  • Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.

    Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.

  • The aluminum ribbon-tubular radiator with large capacity and the optimized cooling system fu rther enhance the heat dissipation capability of the whole truck to ensure the reliability of the engine.

    The aluminum ribbon-tubular radiator with large capacity and the optimized cooling system fu rther enhance the heat dissipation capability of the whole truck to ensure the reliability of the engine.
