Electric Pallet Truck-CBD20-L
2000 kgRated Capacity
1374 mmTurning Radius
48/20 V/AhBattery Capacity
Electric Pallet Truck-CBD20-L

Electric Pallet Truck-CBD20-L

Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements. Easy-to-open upper cover made of iron steel simplify the maintenance and service. It also prevents in-accident damage to the truck body, battery and inside components. The 2-metric-ton model comes standard with stabilizer wheels, while the 1.5-metric-ton model offers them as an option, providing greater stability when driving on uneven surfaces and when turning. The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.

Kontaktieren Sie unsModelle vergleichen
Position
Spezifikation
Einheit
  • Rated Capacity
    2000
    kg
  • Turning Radius
    1374
    mm
  • Battery Capacity
    48/20
    V/Ah
  • Load Centre Distance
    600
    mm
  • Tyres
    PU
  • Lifting Height
    120
    mm
  • Fork Dimensions
    50/160/1150
    S/E/L mm
  • Travel Speed,Laden/Unladen
    4.5/4.8
    km/h
  • Lift Speed,Laden/Unladen
    50/45
    mm/s
  • Max. Gradeability,Laden/Unladen
    6/16
    %
  • Wheellbase
    1175/1248
    mm
  • Service Weight
    199/196
    kg
  • Axle Loading, Laden Front /Rear
    590/1610
    kg
  • Axle Loading, Unloaded Front /Rear
    157/42
    kg
  • Overall Length
    1700
    mm
  • Overall Width
    590/680
    mm

Aufgrund kontinuierlicher technologischer Innovationen können sich Produktkonfigurationen und technische Parameter ohne vorherige Ankündigung ändern. Alle Spezifikationen und Konfigurationen dienen nur als Referenz. Bei Fragen wenden Sie sich bitte an unser internationales Vertriebsteam. Maßgeblich ist der formell unterzeichnete Geschäftsvertrag.

Produktübersicht

Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements. Easy-to-open upper cover made of iron steel simplify the maintenance and service. It also prevents in-accident damage to the truck body, battery and inside components. The 2-metric-ton model comes standard with stabilizer wheels, while the 1.5-metric-ton model offers them as an option, providing greater stability when driving on uneven surfaces and when turning. The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.

  • Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements.

    Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements.

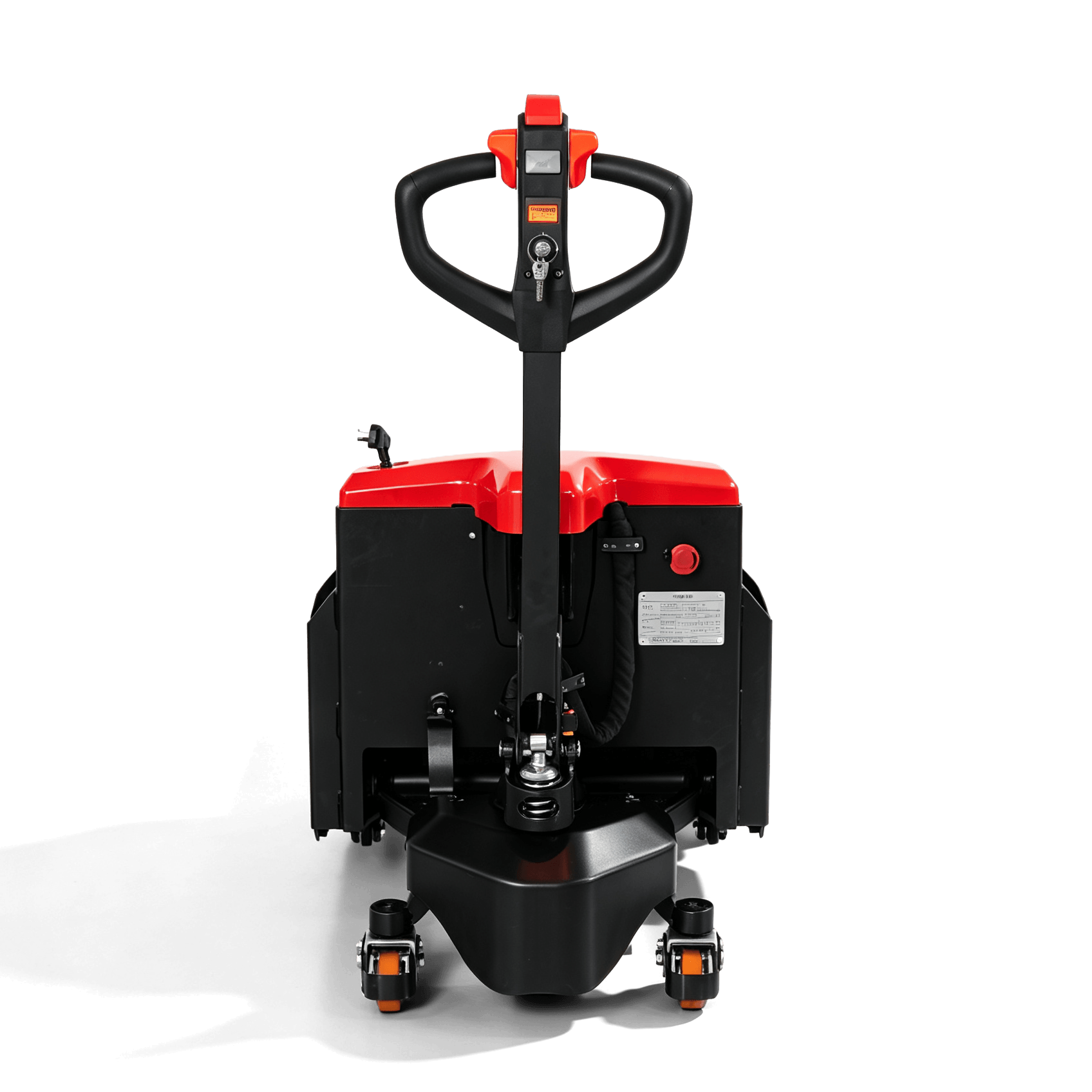

  • Easy-to-open upper cover made of iron steel simplify the maintenance and service. It also prevents in-accident damage to the truck body, battery and inside components.

    Easy-to-open upper cover made of iron steel simplify the maintenance and service. It also prevents in-accident damage to the truck body, battery and inside components.

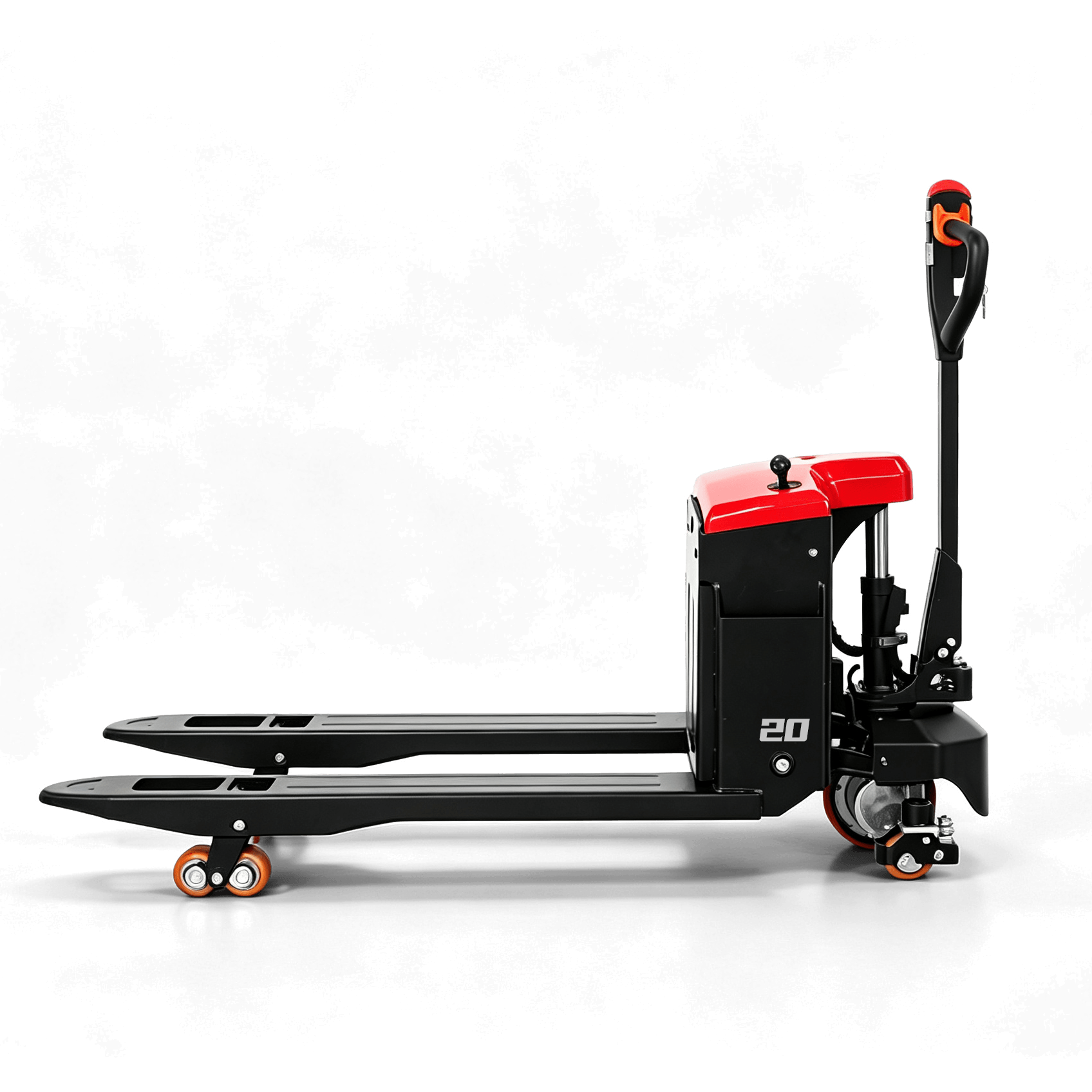

  • The 2-metric-ton model comes standard with stabilizer wheels, while the 1.5-metric-ton model offers them as an option, providing greater stability when driving on uneven surfaces and when turning.

    The 2-metric-ton model comes standard with stabilizer wheels, while the 1.5-metric-ton model offers them as an option, providing greater stability when driving on uneven surfaces and when turning.

  • The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.

    The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.
