首页产品中心仓储设备电动托盘搬运车CBD15
电动托盘车-CBD15
1500 kg额定载荷
1374 mm转弯半径
24/85 V/Ah电池容量
电动托盘车-CBD15

电动托盘车-CBD15

了解 电动托盘车-CBD15 的载荷、起升高度和核心参数。

联系我们浏览并对比产品
参数项
规格
单位
  • 额定载荷
    1500
    kg
  • 转弯半径
    1374
    mm
  • 电池容量
    24/85
    V/Ah
  • 载荷中心距
    600
    mm
  • 轮胎
    PU
  • 举升高度
    120
    mm
  • 货叉尺寸
    50/160/1150
    S/E/L mm
  • 行驶速度，满载/空载
    4.5/4.8
    km/h
  • 起升速度，满载/空载
    45/55
    mm/s
  • 最大爬坡度，满载/空载
    6/16
    %
  • 轴距
    1175/1248
    mm
  • 自重
    221/218
    kg
  • 轴载(满载，前后桥重量)
    460/1260
    kg
  • 轴载(空载，前后桥重量)
    171/50
    kg
  • 整车长
    1700
    mm
  • 整车宽
    590/680
    mm

因技术迭代升级，本产品配置及技术参数如有变更，恕不另行通知。所有参数、配置信息仅供参考，如有疑问，请向我司国际贸易销售确认，最终以双方签署的正式业务合同约定为准。

产品概览

Ideal for loading, unloading, and short-distance transport of palletized goods in warehouses, supermarkets, and workshops. Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements. The compact design and 1,374 mm turning radius enable flexible operation in narrow aisles. The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.

  • Ideal for loading, unloading, and short-distance transport of palletized goods in warehouses, supermarkets, and workshops.

    Ideal for loading, unloading, and short-distance transport of palletized goods in warehouses, supermarkets, and workshops.

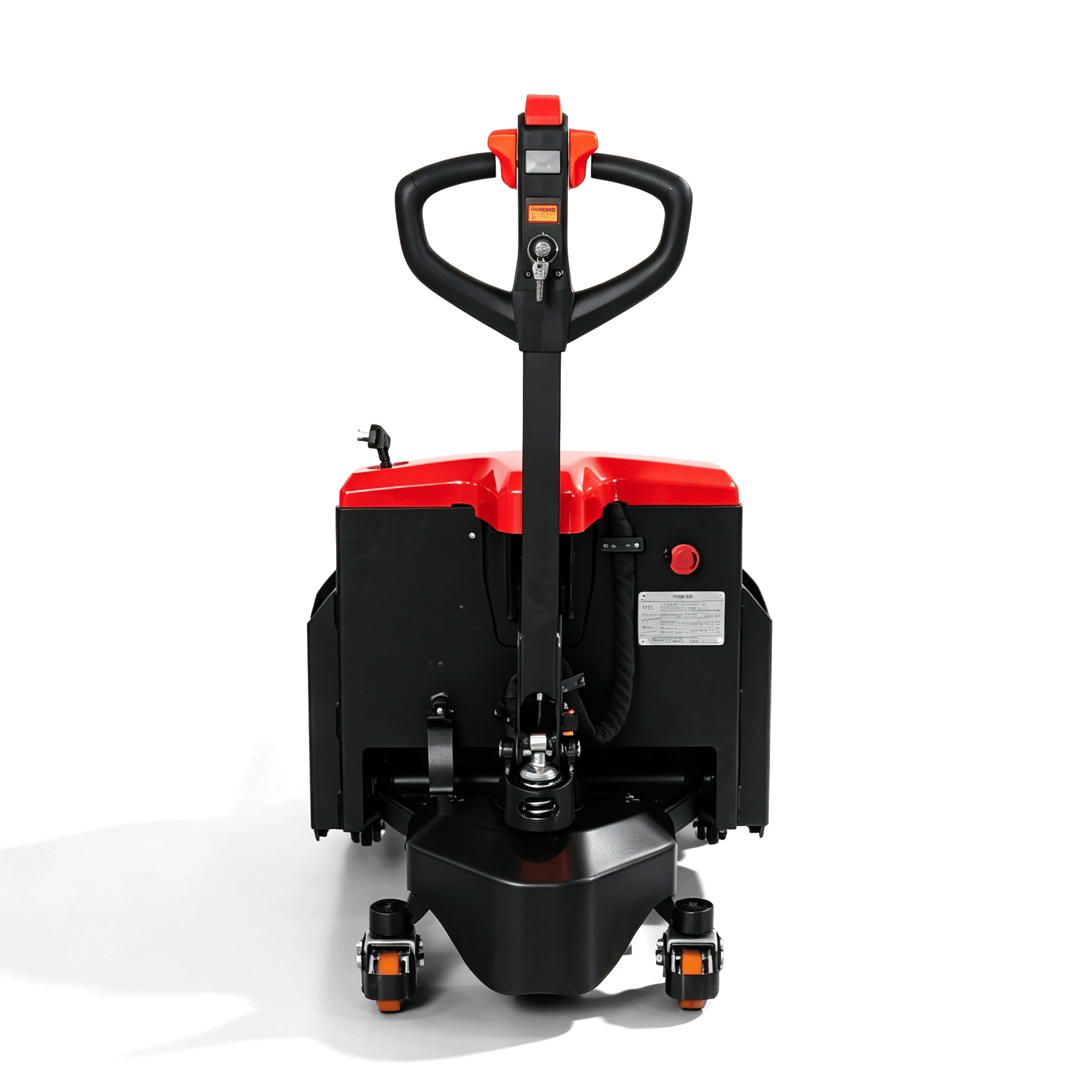

  • Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements.

    Available in 1.5-tonne and 2.0-tonne capacities to meet different material-handling requirements.

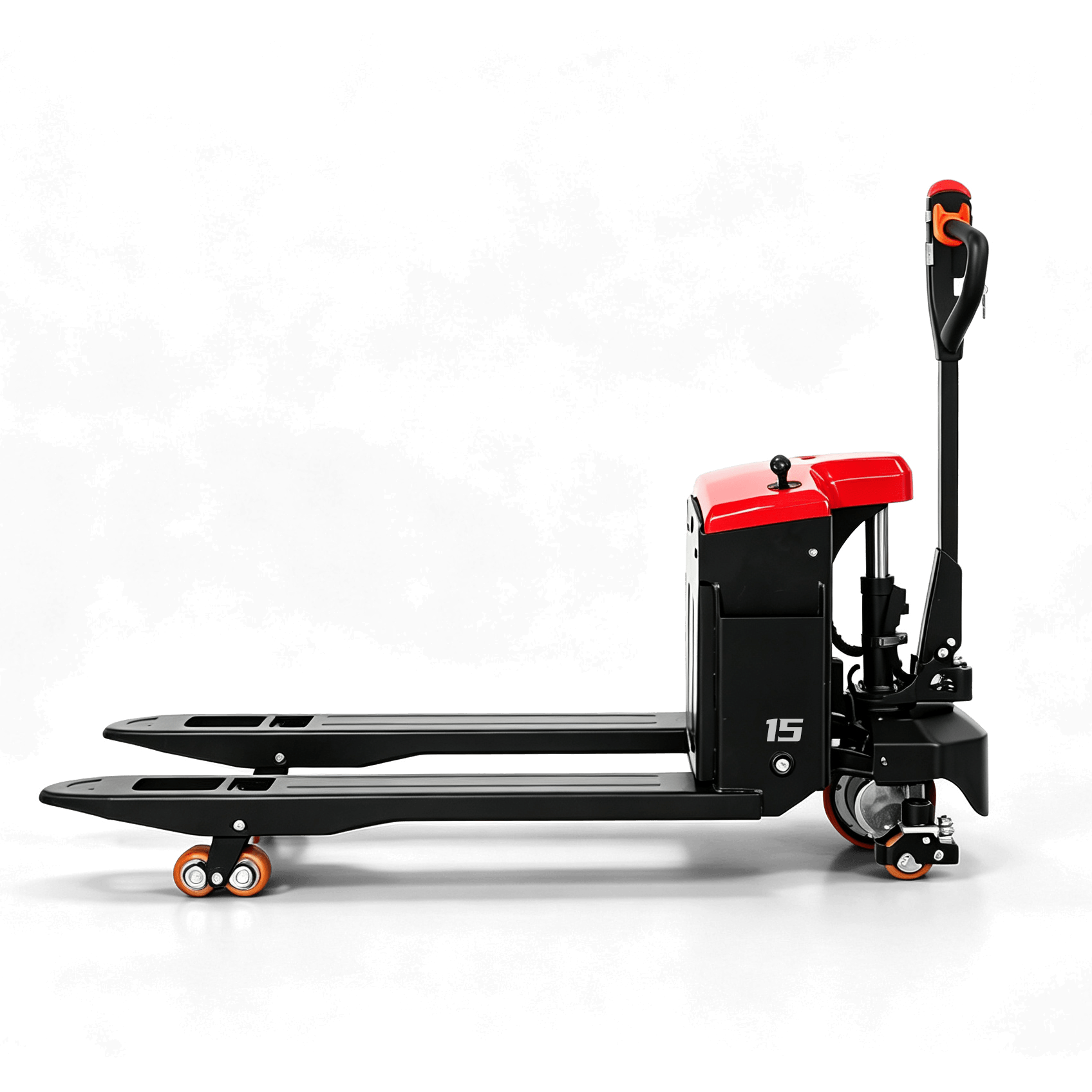

  • The compact design and 1,374 mm turning radius enable flexible operation in narrow aisles.

    The compact design and 1,374 mm turning radius enable flexible operation in narrow aisles.

  • The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.

    The electric lift function makes operation easier, faster, and more comfortable. The lift limit switch provides the operator with a smooth lifting experience while reducing damage to the cargo and the motor.
