电动托盘车-CBD20
2000 kg额定载荷
1374 mm转弯半径
48/56 V/Ah电池容量
电动托盘车-CBD20

电动托盘车-CBD20

了解 电动托盘车-CBD20 的载荷、起升高度和核心参数。

联系我们浏览并对比产品
参数项
规格
单位
  • 额定载荷
    2000
    kg
  • 转弯半径
    1374
    mm
  • 电池容量
    48/56
    V/Ah
  • 载荷中心距
    600
    mm
  • 轮胎
    PU
  • 举升高度
    120
    mm
  • 货叉尺寸
    50/160/1150
    S/E/L mm
  • 行驶速度，满载/空载
    4.5/4.8
    km/h
  • 起升速度，满载/空载
    45/45
    mm/s
  • 最大爬坡度，满载/空载
    6/16
    %
  • 轴距
    1175/1248
    mm
  • 自重
    241 238
    kg
  • 轴载(满载，前后桥重量)
    560/1680
    kg
  • 轴载(空载，前后桥重量)
    191/50
    kg
  • 整车长
    1700
    mm
  • 整车宽
    590/680
    mm

因技术迭代升级，本产品配置及技术参数如有变更，恕不另行通知。所有参数、配置信息仅供参考，如有疑问，请向我司国际贸易销售确认，最终以双方签署的正式业务合同约定为准。

产品概览

The operation handle clearly displays battery status and operating hours for easier truck monitoring. Error code display enables quick truck-status checks and easier troubleshooting. A built-in charger is supplied as standard, providing a more convenient daily charging solution. The electric lifting and lowering system makes load handling easier and faster.

  • The operation handle clearly displays battery status and operating hours for easier truck monitoring.

    The operation handle clearly displays battery status and operating hours for easier truck monitoring.

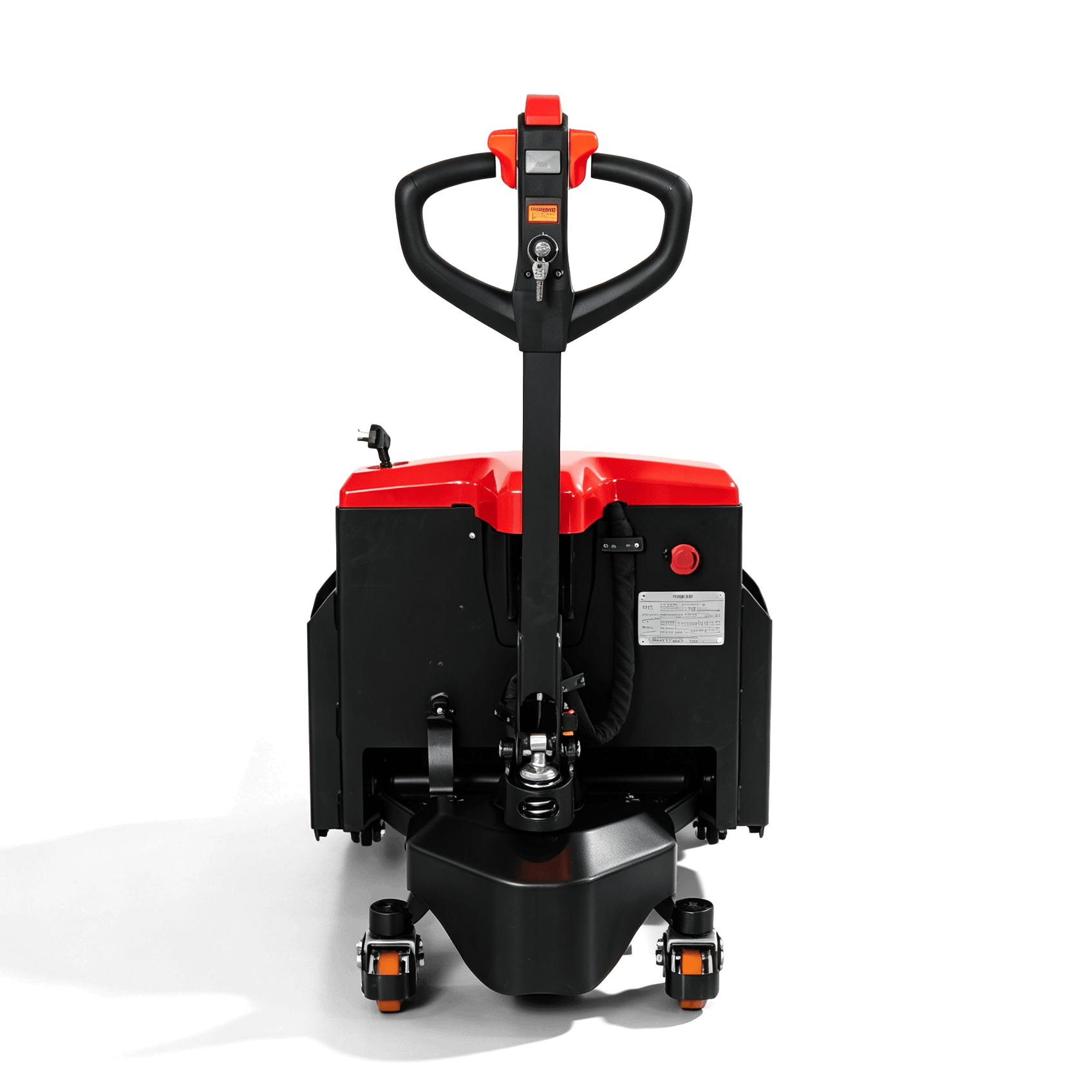

  • Error code display enables quick truck-status checks and easier troubleshooting.

    Error code display enables quick truck-status checks and easier troubleshooting.

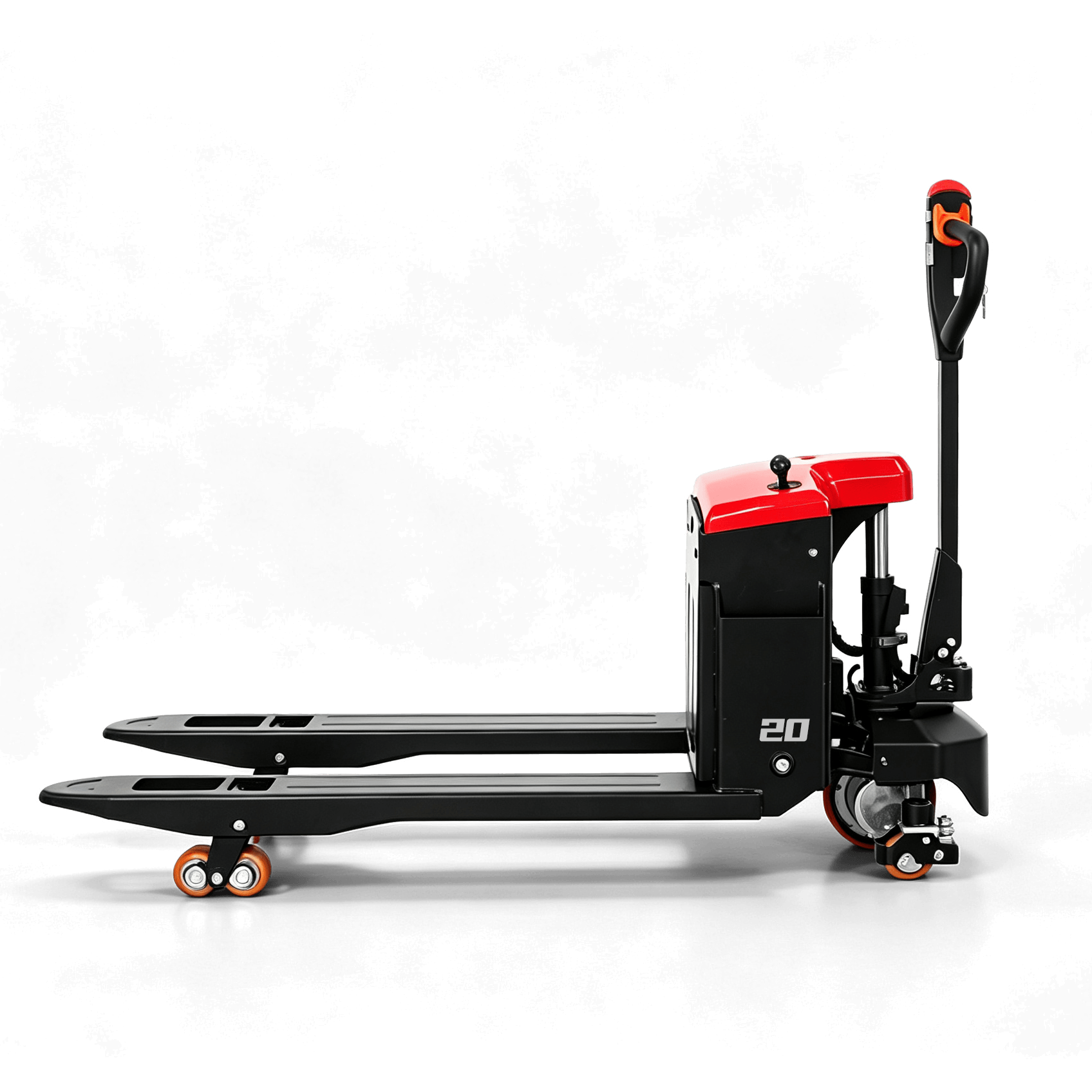

  • A built-in charger is supplied as standard, providing a more convenient daily charging solution.

    A built-in charger is supplied as standard, providing a more convenient daily charging solution.

  • The electric lifting and lowering system makes load handling easier and faster.

    The electric lifting and lowering system makes load handling easier and faster.
